Sale price$109.00 AUD
In stock

What is a Backorder?

Q: What is backorder?

When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.

Q: Will items in my order that are in stock be shipped out first?

We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.
Pickup available at Sunshine West, VIC 3020 Usually ready in 2 hours

S-Chassis K-Frame/Caster mount weld in reinforcement plates


Sunshine West, VIC 3020

Pickup available, usually ready in 2 hours

Unit 11/94 Boundary Road
Sunshine West VIC 3020


Free Shipping on orders over $250

Checking Dispatch Times...

Order and get 545 reward points

Earn points by signing up for our rewards program

Product enquiry

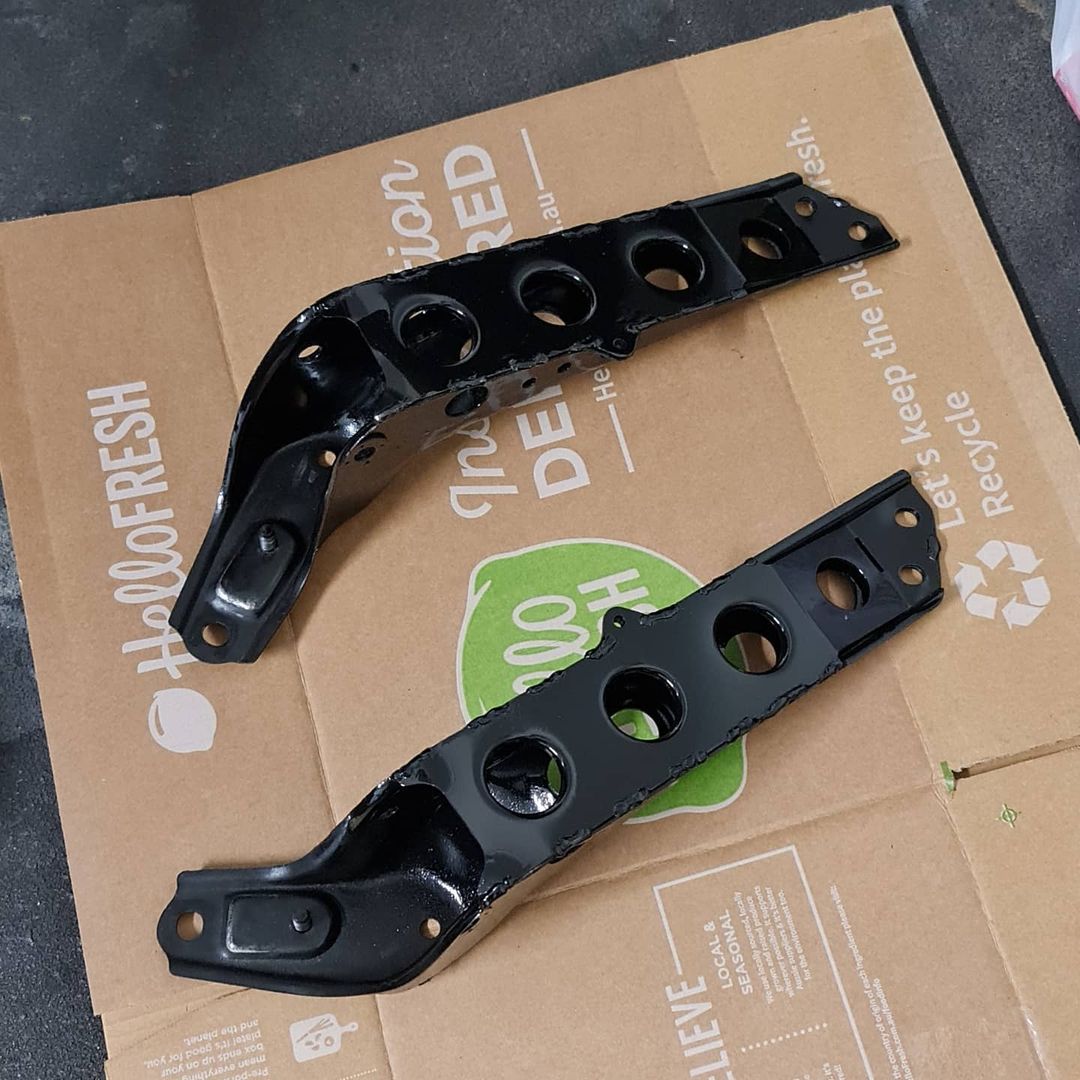

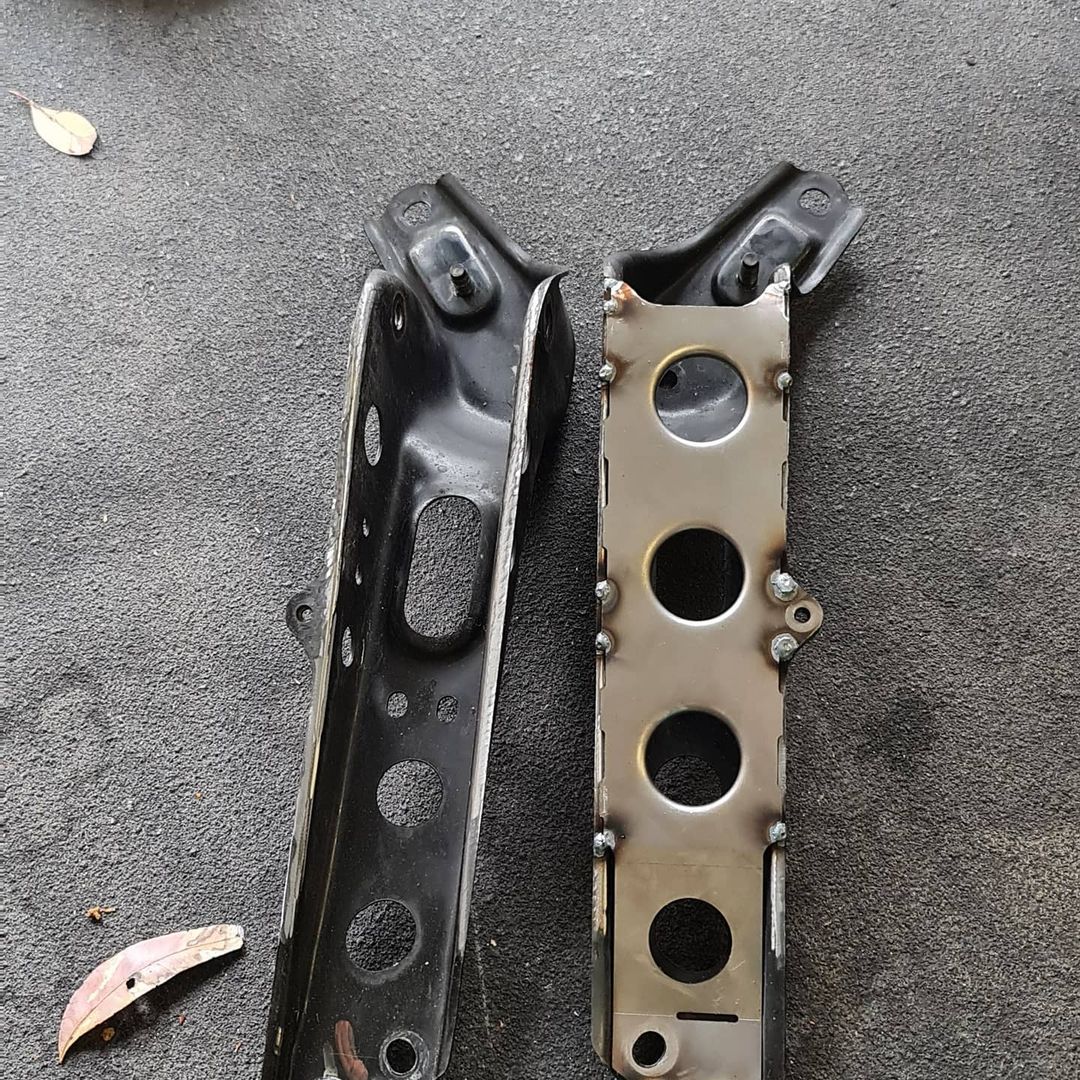

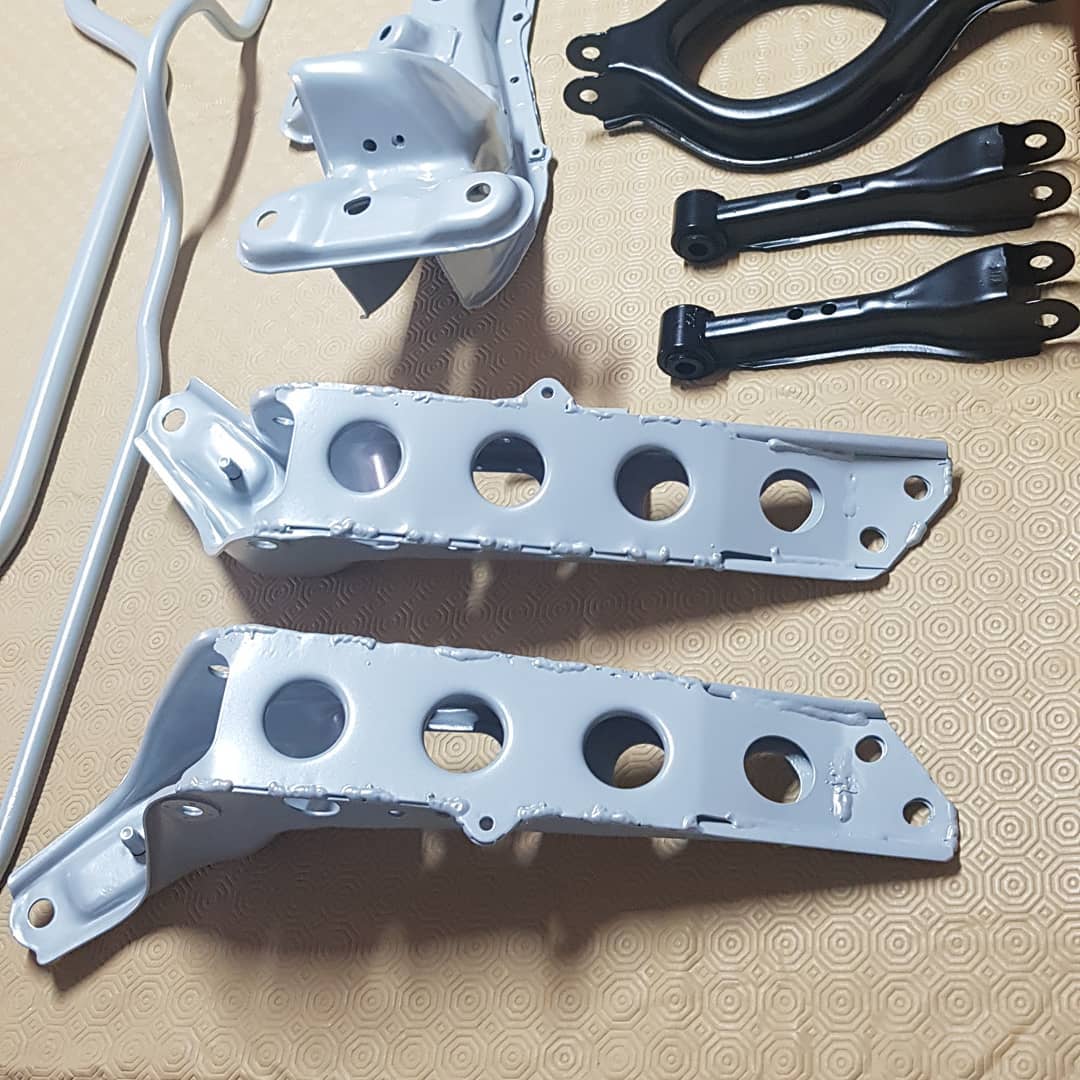

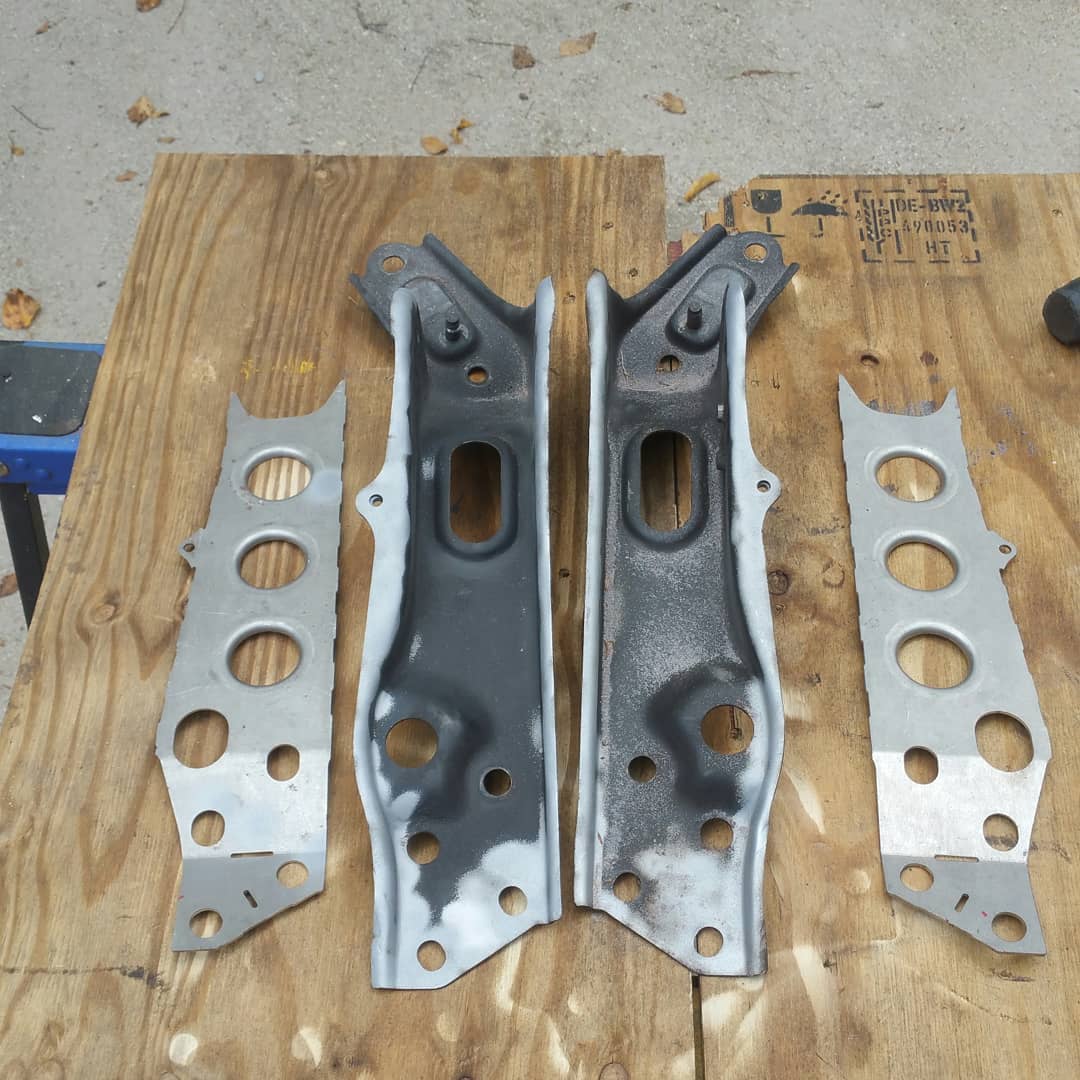

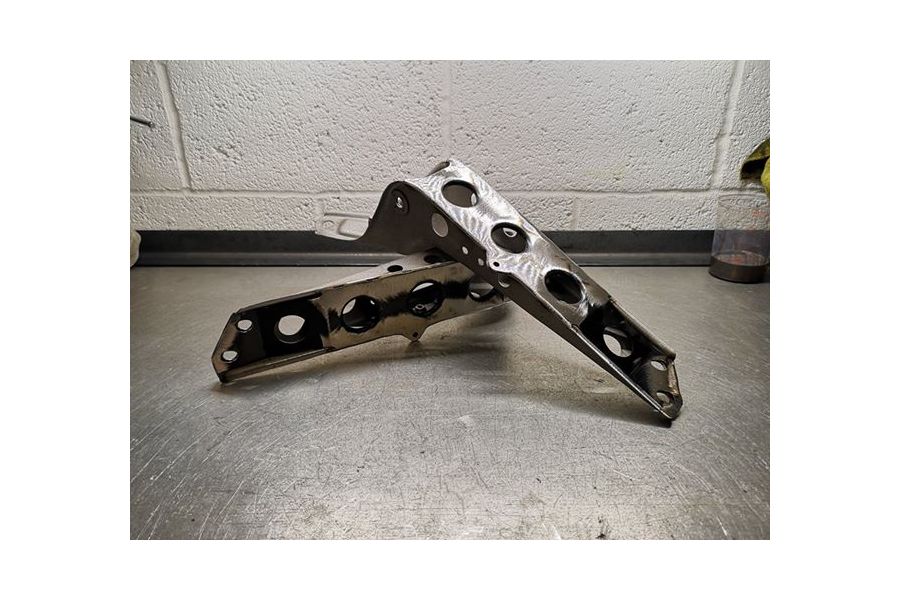

The GKTech weld in K frame/caster rod plates has been designed to help brace one of, if not the most necessary area on your S-chassis. Caster rods put an immense amount of load on the K frame and the K frame itself flexes under load a visually noticeable amount. Our weld in plates will help eliminate this which will result in better overall handling and steering feedback. The added benefit is that if you ride over a ripple strip at the race track (or a gutter on the street) the flat bottom of the K frame will help glide you over rather than you getting stuck and pulling half your car to pieces.

- CAD Designed
- CNC Laser Cut from 2mm C30 steel
- Dimple died for increased rigidity


Will this fit my car?
We can only confirm fitment for the vehicles listed above under vehicle compatibility. If your car is not listed there, then we don't know if it will fit.

Do you make these to suit other cars?
We only sell the parts listed on our website. If it's not listed on our website, then we don't sell it. Sorry.

However, we do sell the plates for S13/180sx as seen here:

What's the advantage of using the GKTech weld reinforcement plates?
Although not as common as broken rear subframes, the front k-frame/caster brackets do break from flex from time to time. A simplebut effective way to brace the front bracket ensuring no flex and better driving response through the front end.

What modifications are required, is this hard to fit?
No modifications are required, simply just remove the front k-frame/caster bracket and weld the plates in.

Is there anything else needed for installation?
You will need a welder. In terms of the plates they will arrive as shown in the product photo.

Can I install this myself? If so how long will installation take?
Yes, provided you have welding experience. Welding in of the kit should take around 15 minutes.

Can I use these plates in conjunction with your under engine bash plate?
Yes, you sure can. The K frame plates don't sit below the K frame so there is no issue at all.


NOTE: Nissan S15 200sx/Silvia will need OEM brace removed before fitment.


S13 CA18 180SX
S13 SR20 180SX


Install Videos

Customer Reviews

Based on 8 reviews
Tom Fox
S chassis weld in K frame plates

Excellent product, well made, install was a breeze


A small deduction in the rating. The small hole for the one screw should be slightly larger so that you can get the OEM screw back in. I used an imbus screw. Otherwise top product.

Michael Fowler
S14 tension rod brace

Great quality / easy install

No Crust
Great bit of gear.

Much better value and looks to be MUCH stronger than Nismo power brace (when used with power brace option). Easy enough for an average welder to assemble, no real tricks to it though we opted to tack the brace in while the castor brackets were still in the car to ensure it went in square. Was stress tested as we tried to straighten old damaged castor brackets and held up mint. All our progress pics of the project can be found on insta #NCRS13

alex degnall
Gktech weld in tension rod brace

Product was a perfect fit easy to weld up! Worked perfectly with the 3 piece gktech sway bar in my RB25det neo swapped s13 perfect clearance
