We have developed an OEM replacement inner tie rod with more adjustment than any other tie rod available. After setting up our own cars we quickly discovered that there are a heap of factors that determine the tie rod length required such as whether you are running rack spacers or not, the knuckles that you're running and then the length of your LCA. These variables create a near endless amount of variables that we narrowed down to up to a 70mm increase in length over a regular S14 tie rod and we also included adjustment for those needing to reduce the length of the tie rod.

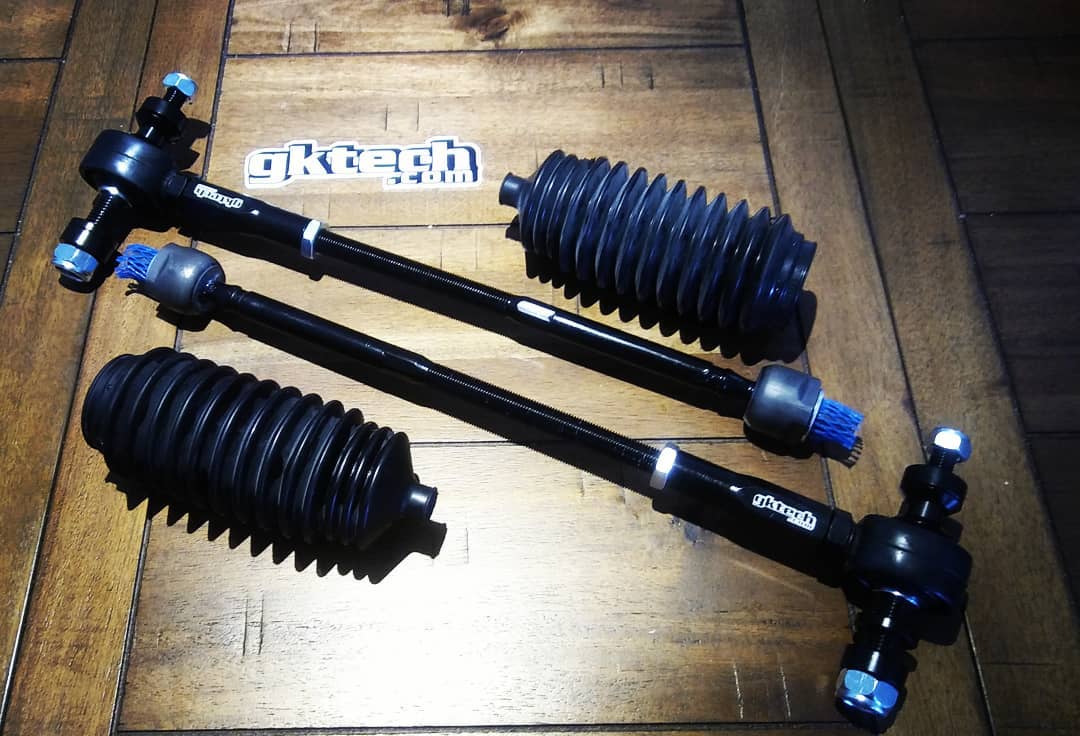

The final product as shown in the photos compared to some popular alternate tie rods shows just how much adjustment our tie rod has.
- Short tie rod adjustable from 66mm minimum length through to 250mm(183mm) of adjustment
- Long tie rod adjustable from 175mm minimum length through to 340mm(175mm) of adjustment
- Increased rack side thread length for more thread overlap
- M14 in size for increased strength over M12 setups
- Rod is manufactured from HRC 25-28 Steel with PTFE (Teflon) lined maintenance free bearing
- 50 degrees range of motion (25 degrees misalignment)
- Sold individually
GKTECH
M14 Super Adjustable Inner Tie Rod
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.We have developed an OEM replacement inner tie rod with more adjustment than any other tie rod available. After setting up our own cars we quickly discovered that there are a heap of factors that determine the tie rod length required such as whether you are running rack spacers or not, the knuckles that you're running and then the length of your LCA. These variables create a near endless amount of variables that we narrowed down to up to a 70mm increase in length over a regular S14 tie rod and we also included adjustment for those needing to reduce the length of the tie rod.
The final product as shown in the photos compared to some popular alternate tie rods shows just how much adjustment our tie rod has.
- Short tie rod adjustable from 66mm minimum length through to 250mm(183mm) of adjustment
- Long tie rod adjustable from 175mm minimum length through to 340mm(175mm) of adjustment
- Increased rack side thread length for more thread overlap
- M14 in size for increased strength over M12 setups
- Rod is manufactured from HRC 25-28 Steel with PTFE (Teflon) lined maintenance free bearing
- 50 degrees range of motion (25 degrees misalignment)
- Sold individually
Choose options
FAQs
How hard are these to install?Remove your old tie rods, measure where these need to be cut in length and install them. It's a very self explanatory install and shouldn't take longer than 30 minutes.
Will this fit my car?
If your car is listed above then the tie rods will fit however they may also fit other setups not listed but we can't be sure.
Do I need a wheel alignment after installing these?
Unless you get the length spot on perfect, you will need a wheel alignment after installation.
What thread pitch is the rack end?
The M14 Inner tie rod is M16X1 on the end that goes into the steering rack and M14x1.5 on the end that goes into the outer tie rod end.
VEHICLE COMPATIBILITY
NOTE: If you have an S13/180sx, S15 or R32 Skyline and upgrading to the M14 inners, you will need to change the tie rod to an M14 version such as that used on the S14, R33 etc
Nissan
CEFIRO A31R32 SKYLINE GTR
R32 SKYLINE GTS-T
R33 SKYLINE GTR
R33 SKYLINE GTS-T
R34 SKYLINE GT-T
R34 SKYLINE GTR
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
S14 200SX/SILVIA
S15 200SX/SILVIA
V35 SKYLINE
Z32 300ZX
Z33 350Z

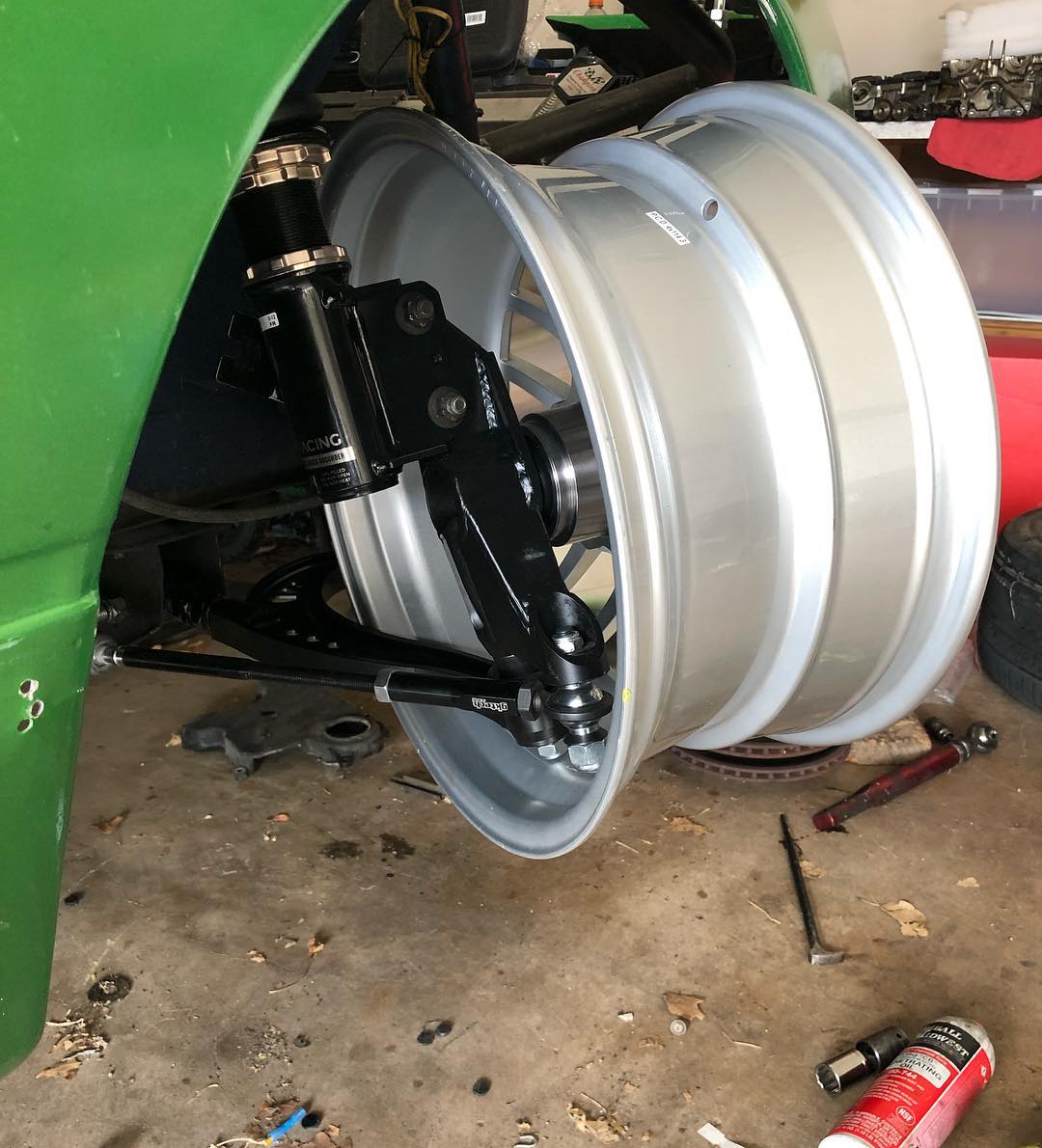

I have these on my R 32 that I just converted to S chassis front suspension!
Love how versatile something as simple as a tie rod with more engagement is. Great product.

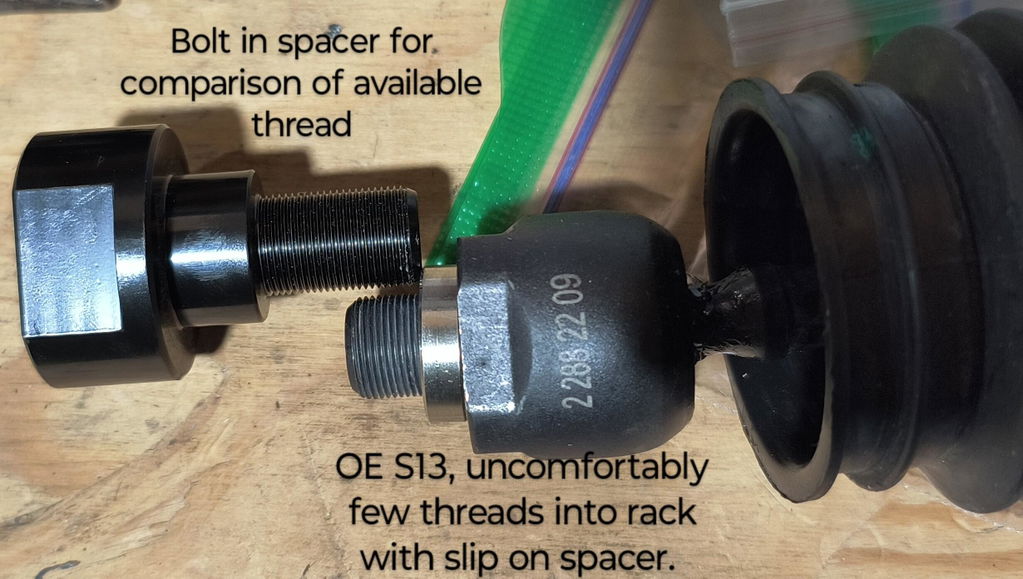

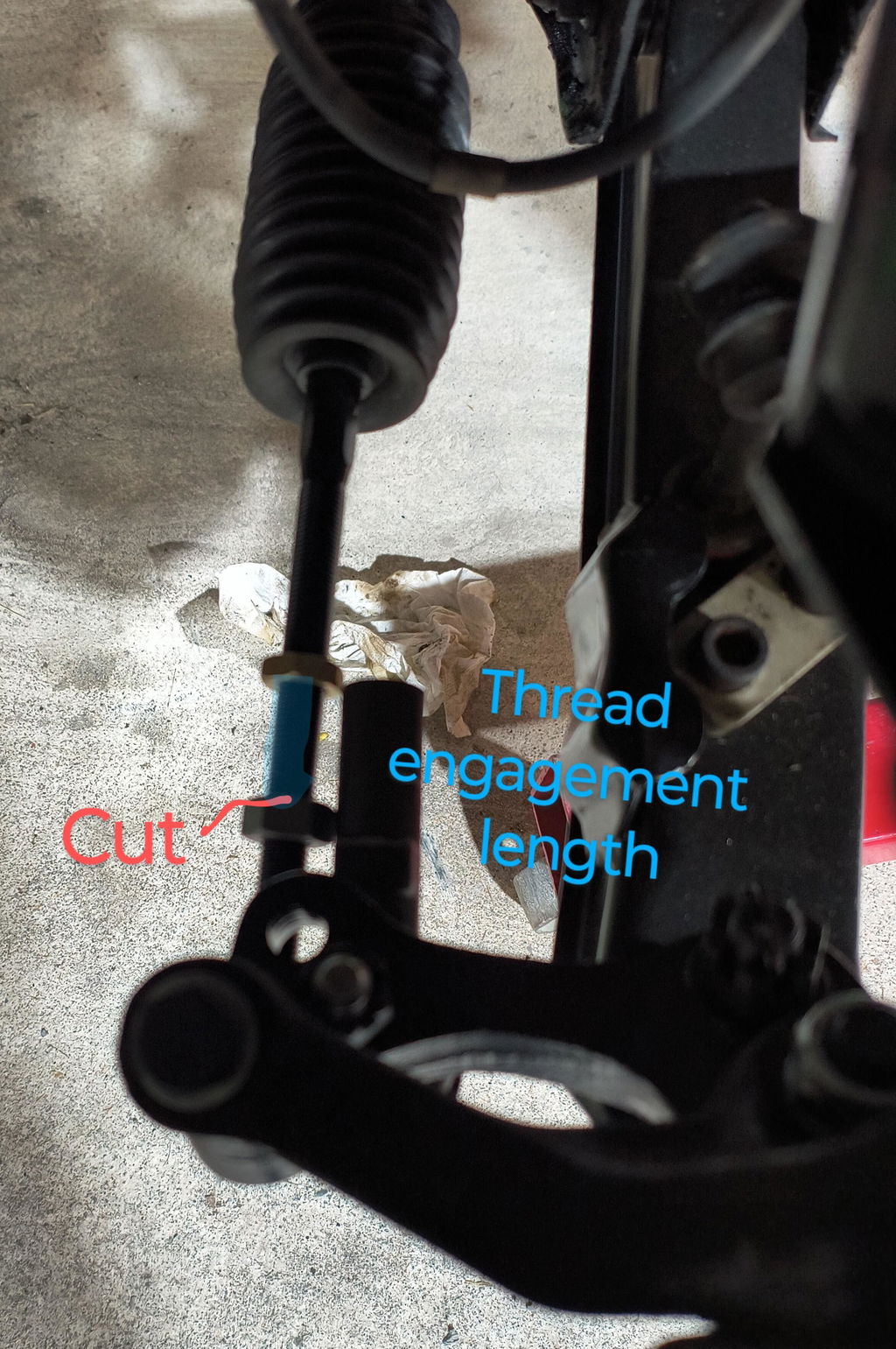

When installing the gktech rcc kit on my s13, i needed longer threads into the tie rod ends to be safe. I checked bolt in rack spacers to see if it would give me the length i needed, but found that compromised oe inner tie rod thread length too much. I needed a solution that addresses both inner and outer thread length.
This long product does exactly that. I used the
gktech bolt in rack spacers and had peace of mind with reasonable thread engagement into the rack, while cutting the outer threads to the exact length i needed to get a ton of thread engagement to the outer tie rods too. Also upgraded to s14 outer tie rod ends (needed with these inners).
Cut with a cutoff wheel
Grind a small 2-4mm chamfer with a bench grinder, with the wheel direction going from thread to center of the rod.
Chase with a thread file if necessary. (Grinding this direction, i didnt need to fix any threads).

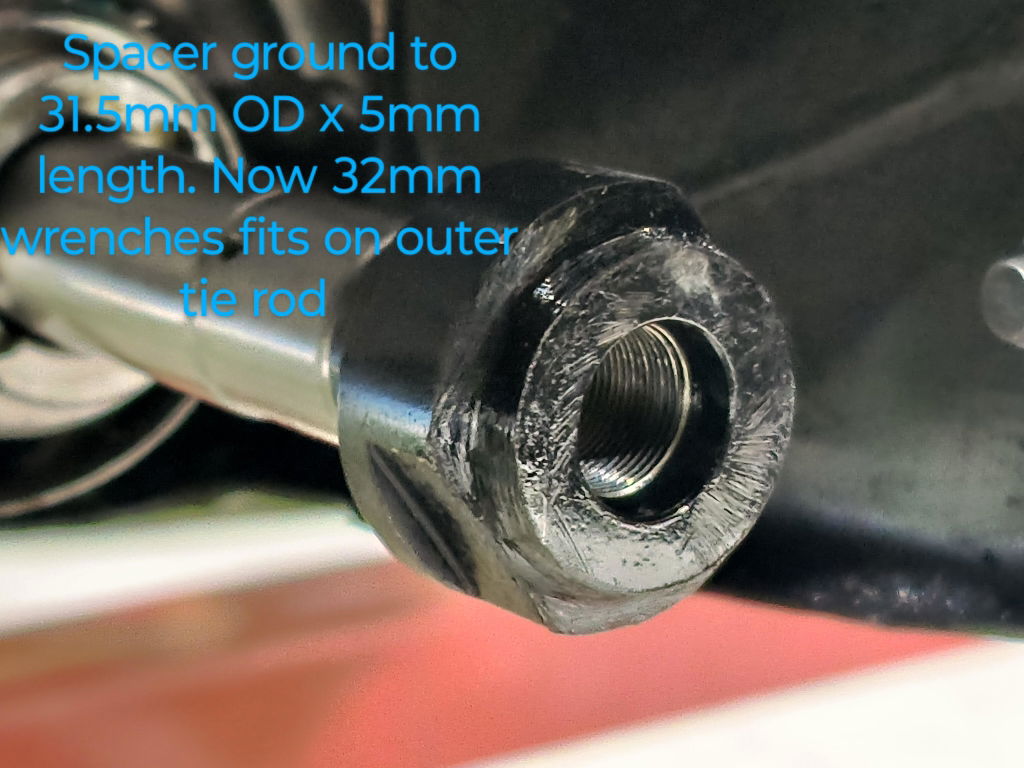

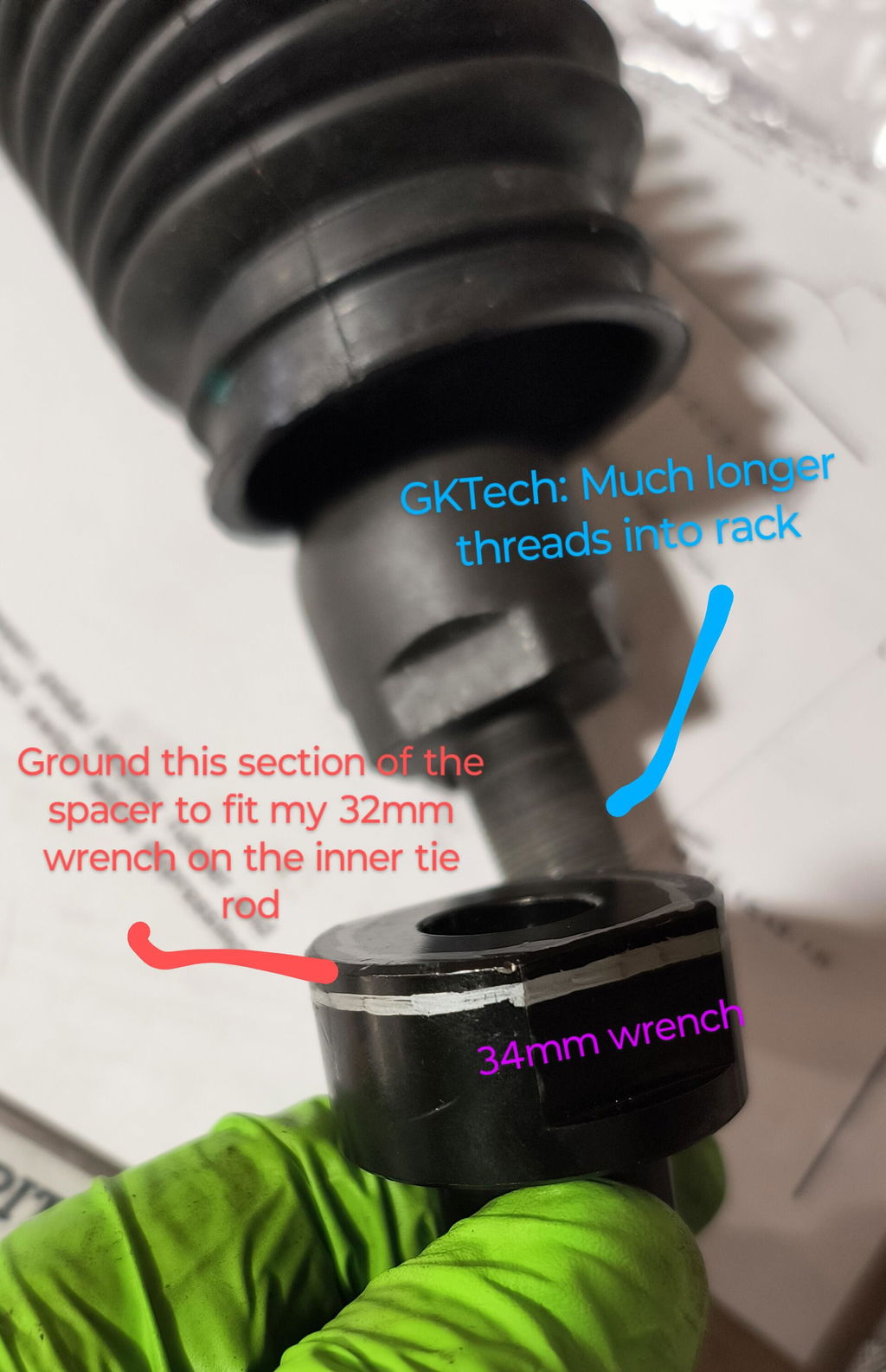

Check pics for more tips when pairing with bolt-in rack spacers, i did some extra grinding so my standard 32mm wrench could fit on the outer tie rod. (Not necessary when not using the bolt-in rack spacer)
Cant say enough good things about gktech. Customer support is top notch, super fast shipping and quality affordable parts. Thanks for everything
Bought these because apparently steering is important in drifting. Plenty of adjustment, solid construction, and now I've got more toe than a bloke wearing thongs two sizes too small.
Car still drives like a shopping trolley with a dodgy wheel, but that's a skill issue, not a GKTech issue.
10/10 – would hit full lock and blame the alignment again.
Great team to deal with. So easy to install. Definitely be purchasing more items in future.
Thankyou
Fitted great to s13 with the 14mm s14 tie rod ends, cut to length worked mint ewith the basic bolt on angle kit.
I ran out of threads on my oem tie rods so the short length worked perfectly
Couldn’t be happier with the products and support
Great quality, easy to cut down to desired length, works great
fast shipping and worked great...
Ordering was super easy and they got it to me right away!
These are amazing and a must have if you are adding the steering rack spacer. It worked perfectly for me and now my alignment isn't garbage anymore.
Super durable and super adjustable.
A breeze to install and crazy amount of adjustment
M14 Super Adjustable Inner Tie Rod
As per usual great quality from GKtech and fast delivery
とても良かったです。
I keep a dozen with me at all times because you can put them on any car. Tons of thread engagement, good ball joints, and they’re black which makes them stealthier
Great fitment, easy install. I had to cut about a half inch off the end of the long tie rod to fit my car but that was quick and easy too.
These come well packaged and worked perfectly.
Great quality and so so grateful that all of their kits have serviceable pieces. Had my original bent by a tow truck driver but thankfully I didn’t have to buy a whole new angle kit, thank you GKTech for always making super quality aftermarket parts!
Awesome, top quality equipment.
Worked great and fixed my issue. Compared to the maxima tierods i had that wore out quick these look way beefier on the joints. Have bought products before and will continue to buy. Officer Dan’s vids are a great help on YouTube also. Need more officer Dan lol
easy to fit and set up
Easy install dose the trick
long enough to fit everyone's angle needs, thicker than stock ones and only 30 bucks. I've had 2 sets now for 2 different 240s and they lasted 3yrs of consistent drifting so far.
Had to use these on my z33 with offset spacers and angle kit. Cut them to size and used the short sleeves and they've held up great so far. Haven't hit anything yet but they've taken a lot of abuse on the track and have been great. They are must for anyone with steering setups who needs those threads to start closer to the rack. Thanks for another good one guys.
The part was install and fit as expected. well made
Its a nice fit exactly like original tie rods. The cutting took me a while cause never done tie rods that had to be cut b4. Had to make sure my cut was right on. Perfect fit after install.
Lots of thread to trim for the perfect size and the price is right.
