Setting up a standalone hydraulic handbrake kit can be expensive and require more commitment than what you wanted, which is why we have created an in-line hydraulic handbrake kit.

The in-line hydraulic handbrake kits are significantly cheaper to setup as you don't have the additional cost of more lines, dual caliper brackets and an additional pair of calipers. Unsprung weight is also reduced compared to a dual caliper hydraulic kit.

Not to mention, the ABS module Nissan uses are renown for being unpredictable, particularly when on track.

Which is why we have replaced the OEM unit with the GKTECH ABS Delete manifold block, which not only removes the ABS but allows the OEM brake system to accept the in-line master cylinder without any issues.

- For race cars only, however, no permanent modifications are required.

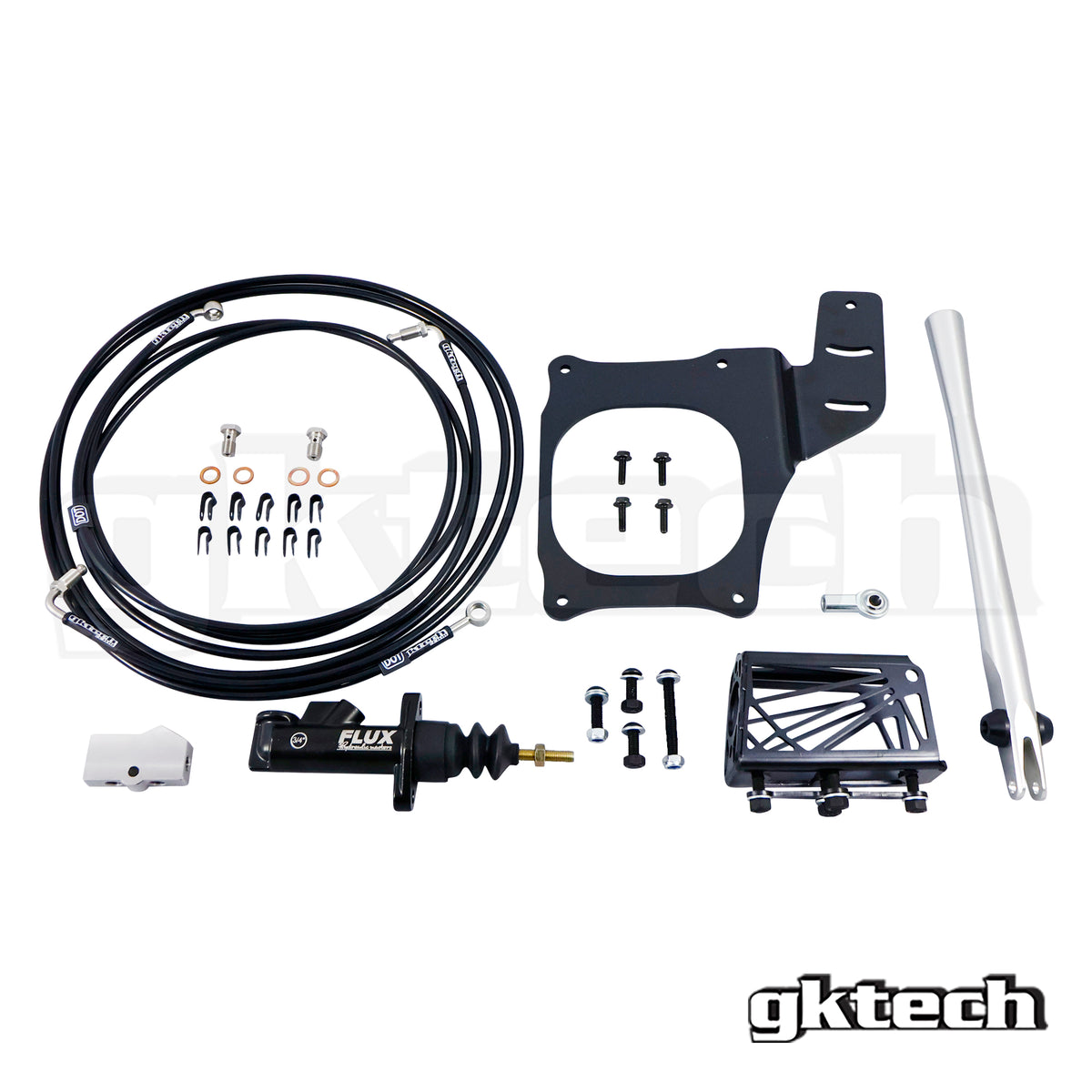

The contents:

ABS Manifold:
There are two options being Replacing OEM ABS Unit and Keeping the OEM ABS Unit.

Replacing the OEM ABS Unit offers a delete manifold which is a direct replacement of your current OEM ABS unit, that the braided brake lines we offer will install to, for more information please see here for the Delete Manifold.

NOTE
- If the ABS Module is disconnected, it will bring up a steering fault resulting in harder steering, go into limp mode and the speedo won't work. A solution for this is to connect the electrical plug to your OEM unit and tuck it to the side.

The other option of Keeping the OEM ABS Unit, does NOT replace your OEM ABS unit, instead you are able to KEEP your OEM ABS unit and this block will then replaces the OEM brake block in the inner guard and adds two connections for the inline hydraulic handbrake. Then you have the choice of selecting the braided brake line to suit.

With this option also, you will still need to disconnect your ABS unit electronically and or incorporate a switch, but this block saves you the hassle of having to delete your ABS unit entirely.

See here for more information.

NOTES
- For the 370Z the 50A pump motor supply and 30A solenoid supply fuses located in the engine bay can be isolated/broken while maintaining the main ABS fuse. This removes power to only the motor and allows the system to continue working and supplying the speedometer signal. To return to factory you would need to purchase an unbroken fuse and switch them out.
- Only compatible with models that have the single piece rear brake block as seen below.

Braided lines:
Made in-house in Australia using stainless steel fittings and using stainless steel braided line with a PTFE outer these lines are made specifically to suit Nissan S/R chassis' and even include the P clips to locate the line throughout your vehicle.

The GKTECH braided brake lines are assembled using stainless steel fittings and hose that consists of a Teflon inner tube wrapped in stainless steel braid and a PVC outer coating for protection. The brake lines have been independently tested to comply with FMVSS106 standards for brake hoses. This makes the lines ADR approved in Australia and they are marked as such on the brake line assemblies.

The FMVSS106 testing procedure that the lines have been tested against includes the following tests:

• 370lbs pull test
• 35 hour whip test
• 7000psi burst test
• -45degC to 146degC temperature tests
• 24 hour salt corrosion resistance test

Handbrake handle:
This beautifully crafted CNC machined aluminium lever has been designed with ergonomics in mind whilst being aesthetically pleasing. Eg. it is comfortable and it looks good. Choose between silver, black, blue, pink, purple, red, orange, gold or neo chrome.

Master cylinder:
Choose between 5/8" and 3/4". For non Brembo calipers our recommendation is 5/8" and for the Brembo calipers we recommend the 3/4". More on that below in the FAQ's.

Chassis specific handbrake mount:
Our chassis specific handbrake mounts are designed to ensure that our handbrake assembly can be fitted in an optimal position without the need to cut or drill into your transmission tunnel. We have made 2 different position variants in addition to LHD or RHD specific.

Inside trim = mounts inside/within the center console itself, this will require trimming to the center console for the lever.

Outside trim = mounts outside the center console itself, no modifications required to the trim when used on either the left and right-hand side.

NOTE: Will not work when replacing a Non-Akebono ABS unit. Eg. if your car came with non Akebono brakes, this will not work.

NOTE #2: Removing the ABS unit will mean that ABS and TCS will no longer work
