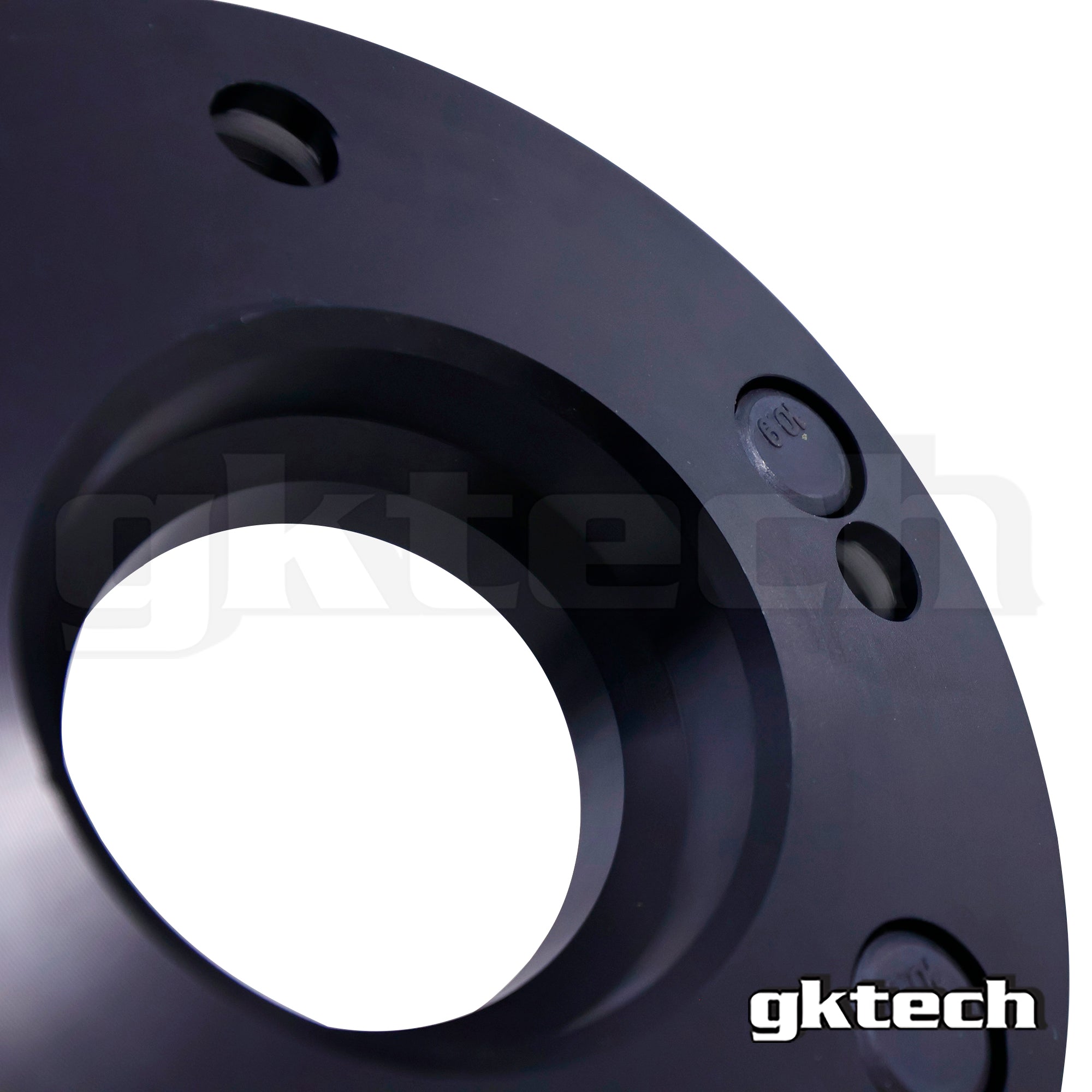

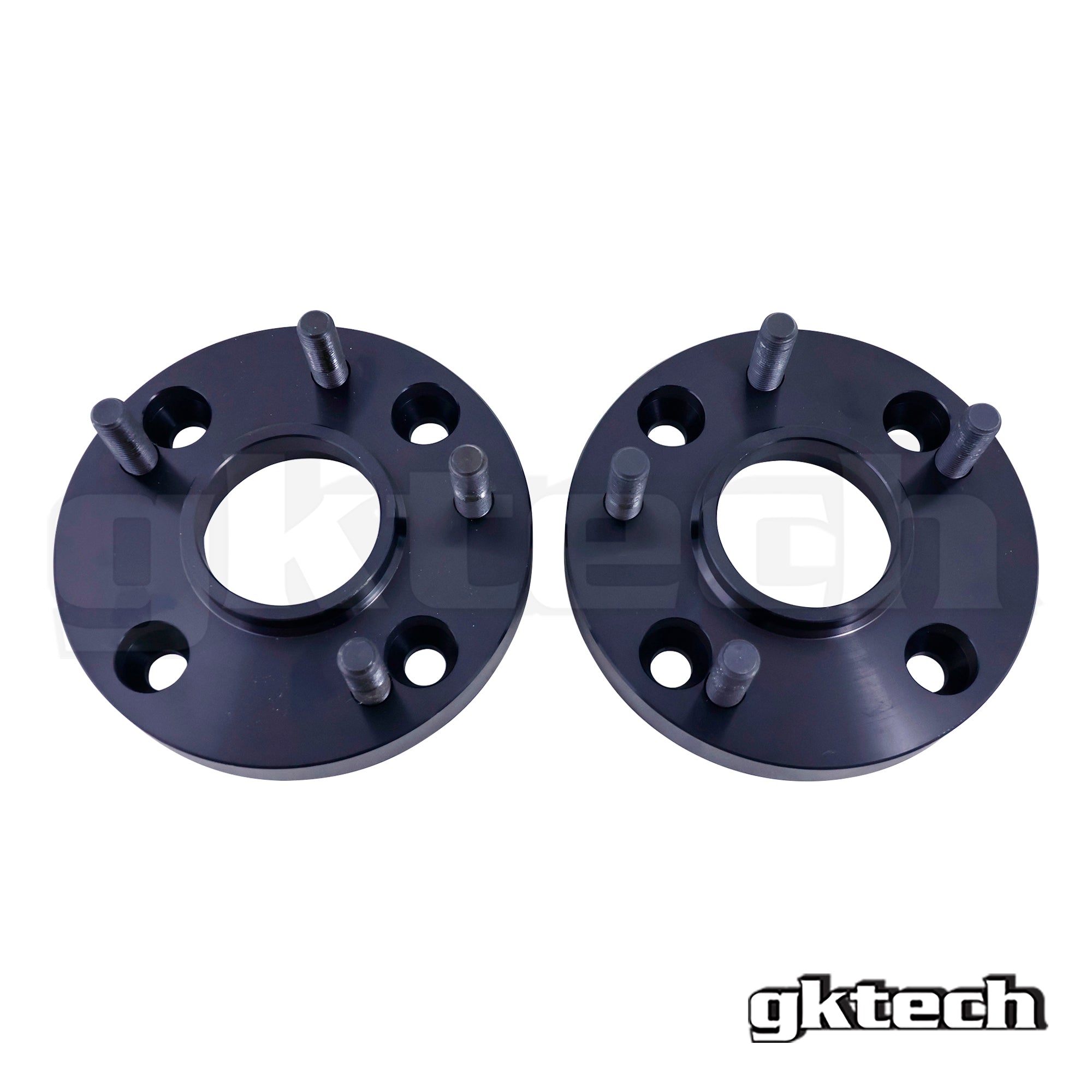

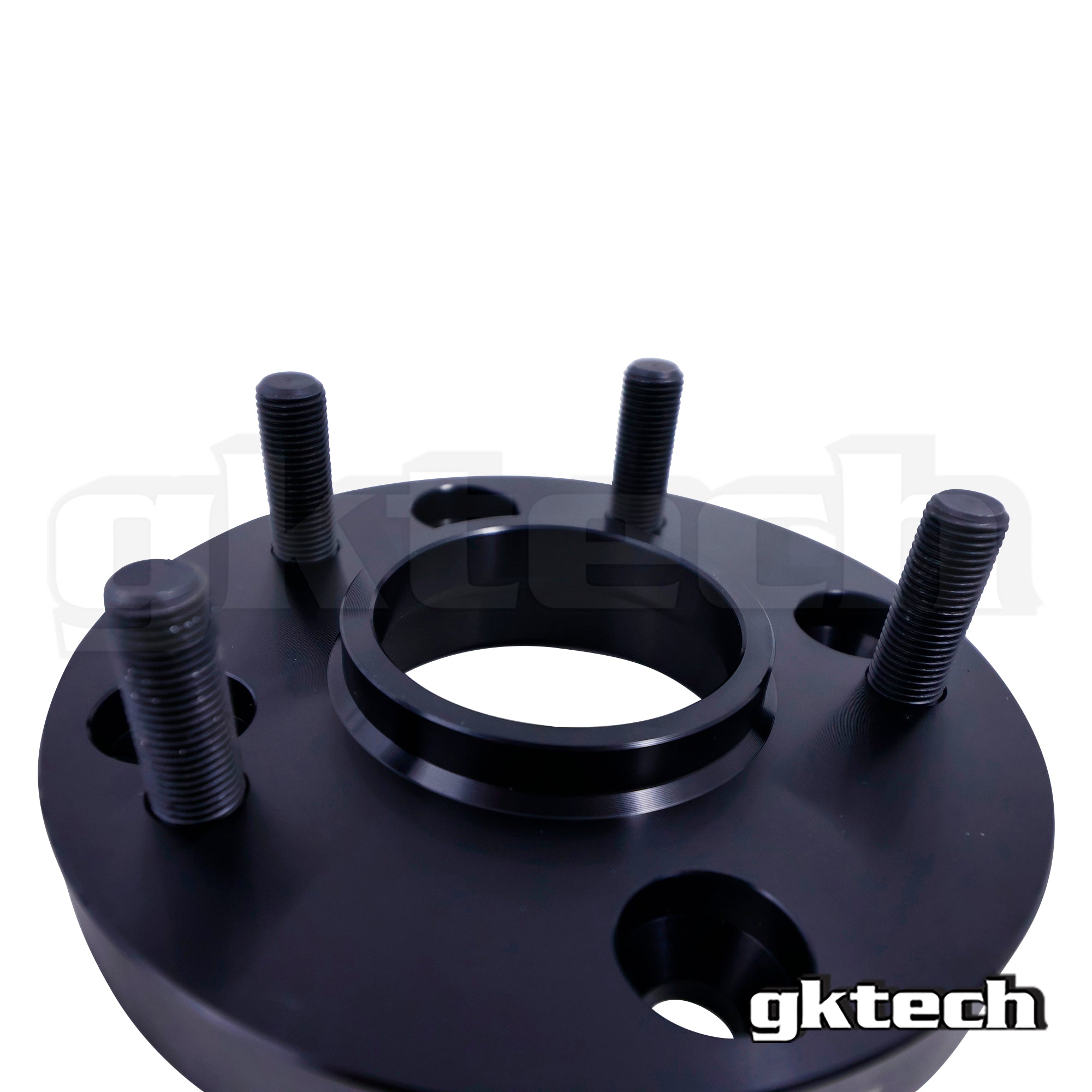

The GKTECH 4 to 5 stud wheel adapters allow a 4x114.3 stud car to fit 5x114.3 stud wheels.
Sold as a pair these wheel adapters bolt on to your standard hub just like a normal wheel spacer however 1 of your standard studs is then replaced with a longer stud which runs through the adapter and acts as the 5th stud.
The wheel adapters are hub centric to suit Nissans 66.1mm hub and are manufactured to the highest quality in T6061 Aluminium and then hard anodized to further increase the strength.
A super easy and cheap way to make your S13/180sx 5 stud.
- CNC machined aluminium T6-6061 construction
- Grade 10.9 studs - Hub centric to suit 66.1mm Nissan hubs
- 114.3mm PCD with M12 x 1.25 thread - 20mm thick wheel adapters

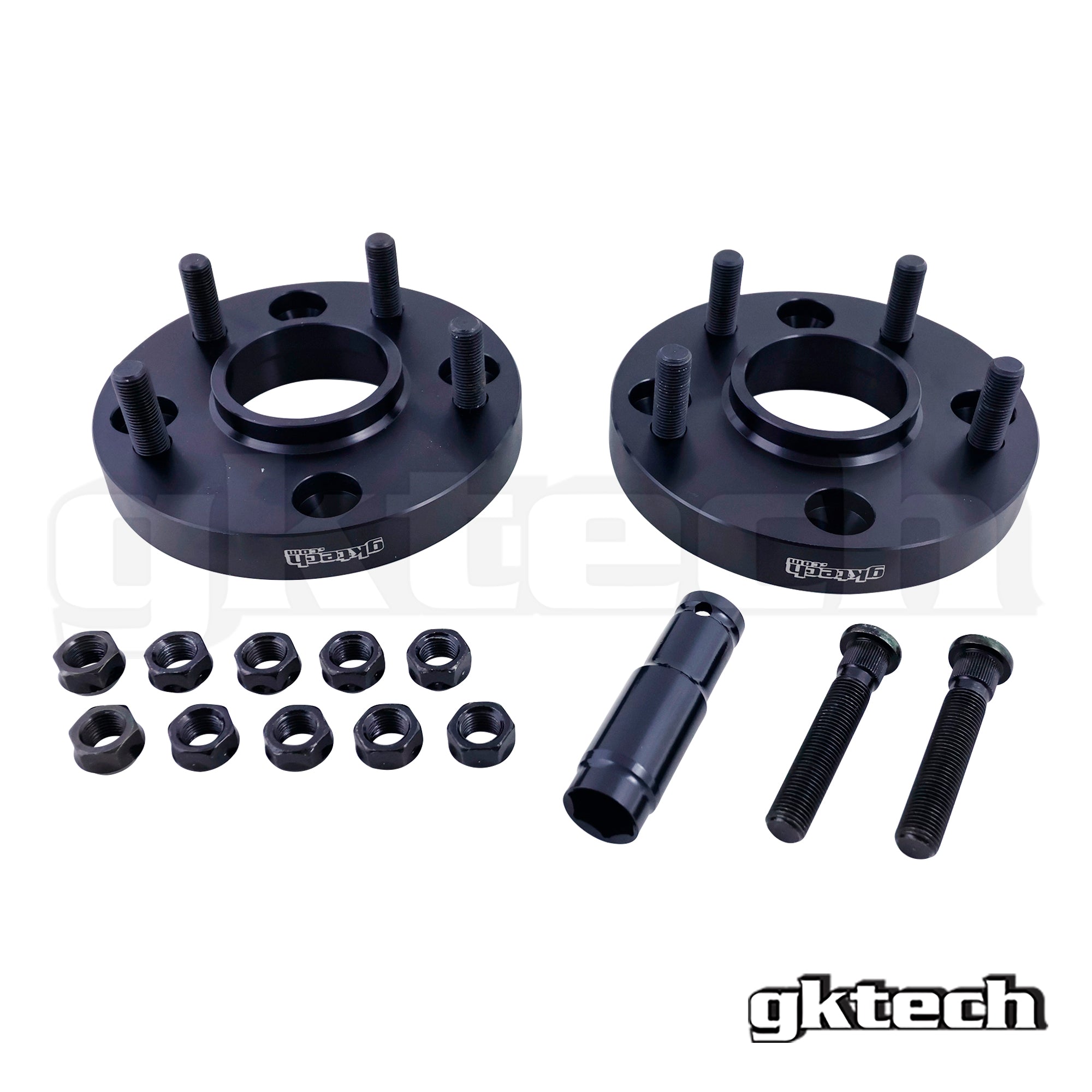

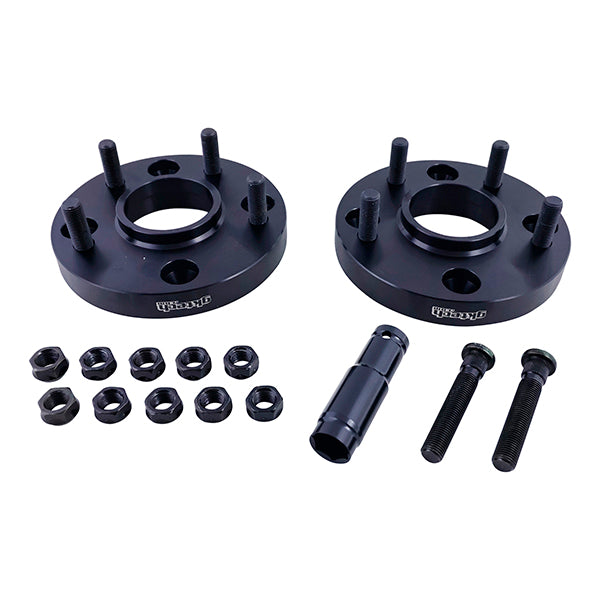

- Includes extra wheel studs required to install the adapters.
- Sold as a PAIR
NOTE: The kit includes an extra long 13mm knurled stud that needs to replace the OEM stud. All 4 stud models listed either use only a 12.8mm or 13mm stud, however it is recommended to check if you believe your stud may be larger. If you do need a larger stud we have them HERE
GKTECH
4 to 5 stud wheel adapters
What is a Backorder?
Q: What is backorder?
When a product is on backorder, it means that we have sold out and we are opening a back order due to popular demand. This is essentially a queue, when new stock arrives from production, we’ll send your order.Q: Will items in my order that are in stock be shipped out first?
We will send your order altogether once your backorder item is ready! You may wish to place separate orders if you want an item before the other is due back in stock.The GKTECH 4 to 5 stud wheel adapters allow a 4x114.3 stud car to fit 5x114.3 stud wheels.
Sold as a pair these wheel adapters bolt on to your standard hub just like a normal wheel spacer however 1 of your standard studs is then replaced with a longer stud which runs through the adapter and acts as the 5th stud.
The wheel adapters are hub centric to suit Nissans 66.1mm hub and are manufactured to the highest quality in T6061 Aluminium and then hard anodized to further increase the strength.
A super easy and cheap way to make your S13/180sx 5 stud.
- CNC machined aluminium T6-6061 construction
- Grade 10.9 studs - Hub centric to suit 66.1mm Nissan hubs
- 114.3mm PCD with M12 x 1.25 thread - 20mm thick wheel adapters
- Includes extra wheel studs required to install the adapters.
- Sold as a PAIR
NOTE: The kit includes an extra long 13mm knurled stud that needs to replace the OEM stud. All 4 stud models listed either use only a 12.8mm or 13mm stud, however it is recommended to check if you believe your stud may be larger. If you do need a larger stud we have them HERE
Choose options
FAQs
What torque should the nuts be set to?The wheel nuts supplied with our wheel spacers are designed to be torqued down to 98-118nm (72-87ft-lbs). For the wheel nuts, please refer to the factory service manual as they need to be torqued down to the OEM torque spec.
What's involved in installing these adapters?
You will need to press a new stud (included) into the hub and then simply bolt on the wheel adapter. Once the wheel spacers are bolted on you will need to mark the standard wheel studs and trim accordingly.
The standard wheel studs are 26mm's in length and the spacers are 20mm's so that extra 6mm's needs to be trimmed off the standard studs.
Do you make different sized or PCD wheel spacers?
We only sell the items listed on our website. If it's not listed on our website then we don't make it and we can't help. Sorry.
Are these safe?
These are no different to any other wheel spacer. They are machined from T6-6061 aluminium and are hub centric with grade 10.9 studs. They're strong! That said, as with all wheel spacers or adapters they are not intended or legal for road use.
I damaged/lost my socket, do you sell replacements?
Yes, they can be found here - https://au.gktech.com/4-to-5-stud-wheel-adapter-socket
I damaged/lost my wheel nuts, do you sell replacements?
Yes, they can be found here - 4 to 5 spare nuts
What is the O.D of the spacer?
150mm
VEHICLE COMPATIBILITY
Nissan
R32 SKYLINE GTS-TR33 SKYLINE GTS-T
R34 SKYLINE GT-T
S13 CA18 180SX
S13 CA18 SILVIA
S13 SR20 180SX
S13 SR20 SILVIA
S14 200SX/SILVIA
S15 200SX/SILVIA
